AWS Networking Project

Secure VPC Foundation

A small company wants to migrate a simple web application to AWS. Customers must be able to access the website from the internet, while the application servers and database remain isolated from direct public access.

This project builds and verifies a secure AWS network foundation using a public load balancer, private application subnets, private database subnets, route tables, security groups, and controlled outbound access.

Back to Projects View on GitHub

SOLUTION

Public entry point with private application and database tiers

The Amazon VPC uses public subnets for an internet-facing Application Load Balancer, private application subnets for EC2 instances in an Auto Scaling Group, and private database subnets for Amazon RDS.

Public traffic reaches only the load balancer. The application instances do not have public IPv4 addresses and accept HTTP traffic only from the ALB security group. The database is configured with public access disabled and is placed in a private DB subnet group.

The private application tier uses a NAT Gateway for outbound internet access and an S3 Gateway Endpoint for private S3 access. Route tables and security groups separate the public, application, and database layers.

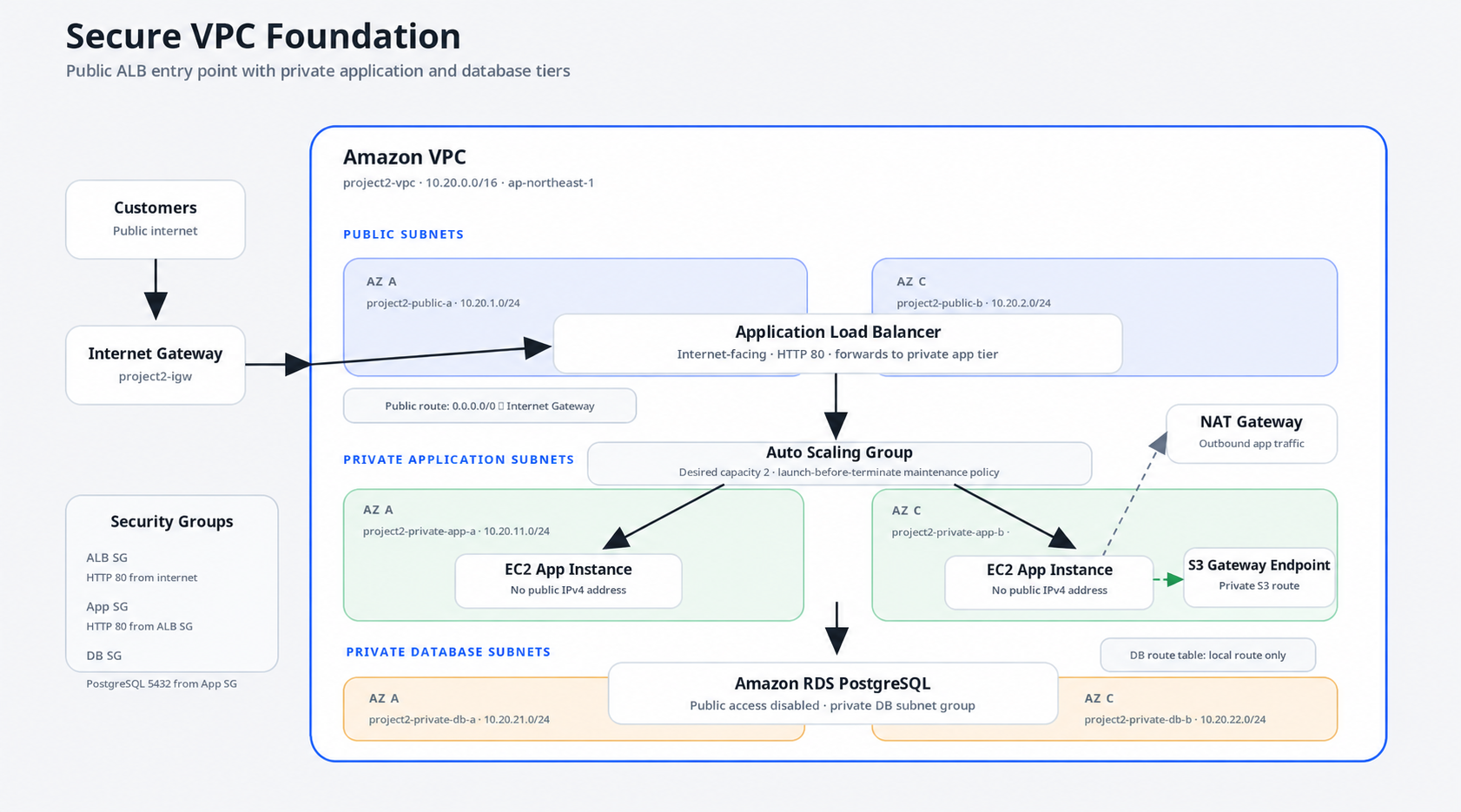

ARCHITECTURE DIAGRAM

VPC network design

Secure VPC Foundation architecture diagram

EVIDENCE

Console build, CloudFormation, and verification

The environment was built manually in the AWS Console, verified through the public ALB DNS name, documented with screenshots, reproduced with CloudFormation, and then decommissioned to avoid ongoing charges.

The GitHub repository includes evidence for the VPC resource map, subnet layout, route tables, security groups, private EC2 instances, RDS configuration, healthy target group, Auto Scaling Group, and successful browser test.

GITHUB

Implementation details

The repository contains the project README, CloudFormation template, console build notes, evidence screenshots, and cleanup documentation. The architecture was first validated manually in the AWS Console, then reproduced with CloudFormation for repeatable deployment and deletion.
